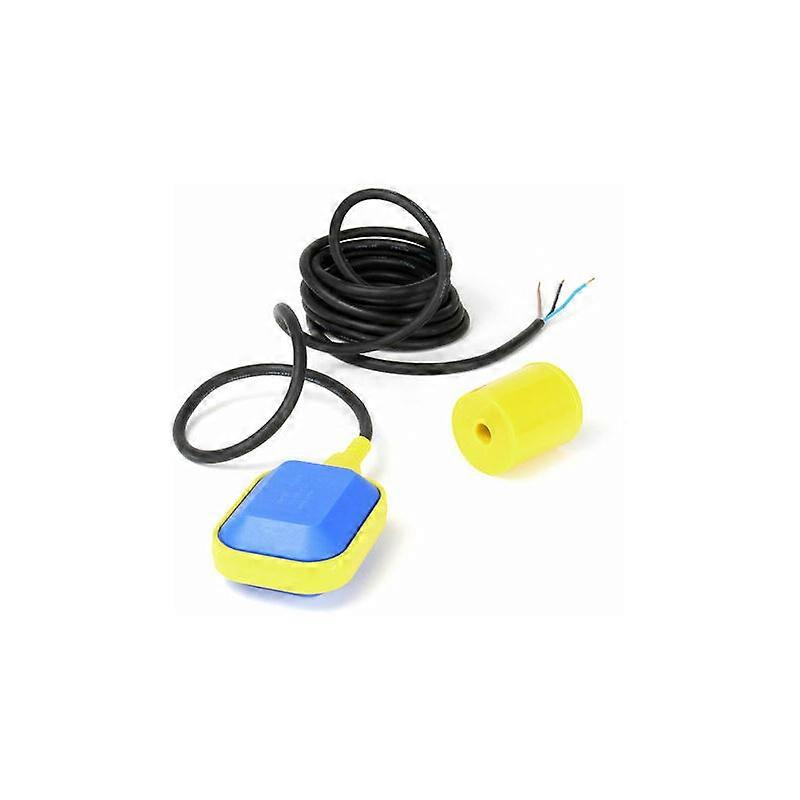

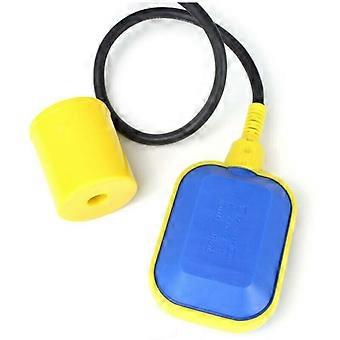

TheWilTec float is a hollow floatwhich operates according to the principle of upward force. This hollow float is lifted by the lifting force. and pushed upwards by the liquid rising up to what happened &agrave; an angle of 50&deg; compared to horizontally, a start-up is then triggered. The float can be attached to by screwing on the side or if you have an open tank by placing it from above, on the liquid. The switching point can be defined very precisely thanks to the ballast weight with which it is equipped. in standard. Suitable for almost all pumps. The float is very suitable for controlling the filling level of any liquid that does not attack its material, regardless of the degree of contamination. clogging. You can use this float as a full or empty indicator, to control pumps or valves or other alarm signals. If your pump has a power of more than 1, 1 kW you will need to place a standard connector or power relay upstream, sold commercially. A 380/400V three-phase pump can be operated with a 380V power connector. 10m 250V 16A Float switch for submersible pump ;e Reference 50593 Registrierungsnummer WEEE DE45283704 number of packages 1 Dimensions 80 x 159 x 43 mm Material PVC Application / Information / Features Falls Ihre Pump mehr als 1.1 kW Leistung hat, sollten Sie in handels&uuml;bliches Leistungssch&uuml;tz oder ein entsprechendes Leistungsrelais vorschalten . With 380V Leistungssch&uuml;tz also 380/400V Dreiphasen-Pumpen steuerbar. +/- 50&deg;, Current fluctuations allowed +/- 10%, Max. power. 16A Protection class IP 68 Input voltage 230VAC ~50Hz Start-up (float) Angle +/- 50&deg; the temperature range from 0-50&deg;C Extras/Features Cross section 3 x 0.5mm&sup2; Product Float Switch Sheet < td>Without Connector Medium filter Fresh / clear / well / waste water Weight [kg] 1.4000 Package: Height in mm 160 < /tr> Package: Length in mm 240 Package: Width in mm 100< /td> Availability Delivery time until 7 days* Navigation Paket
