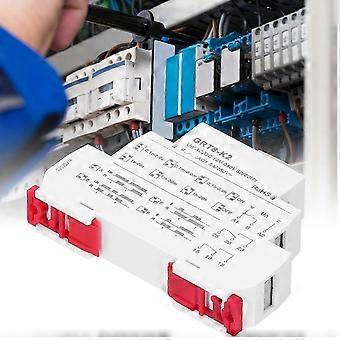

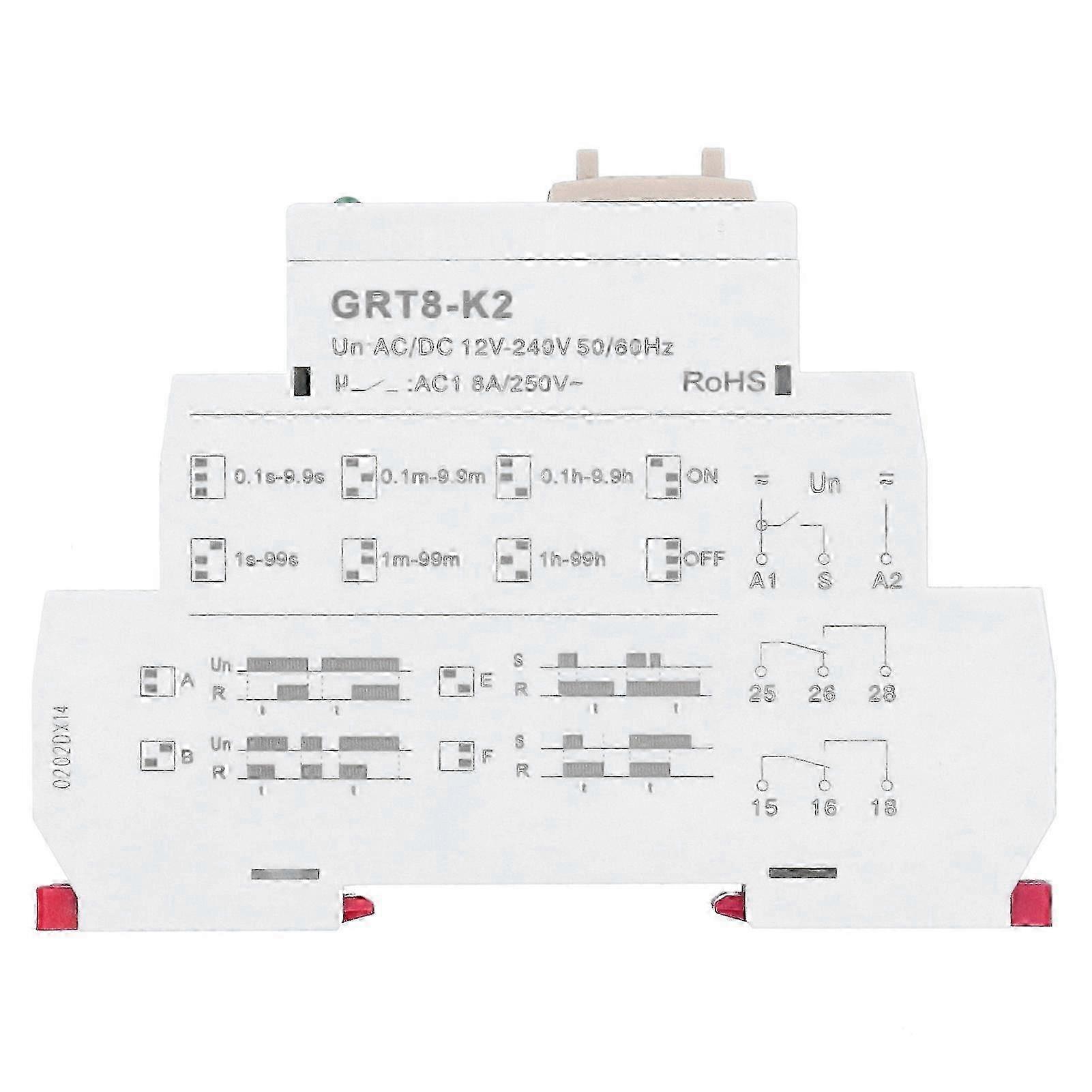

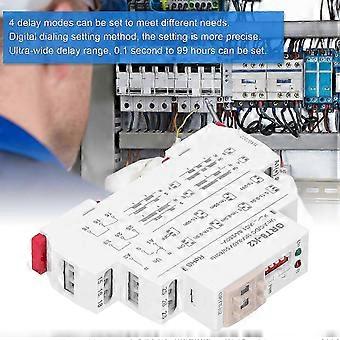

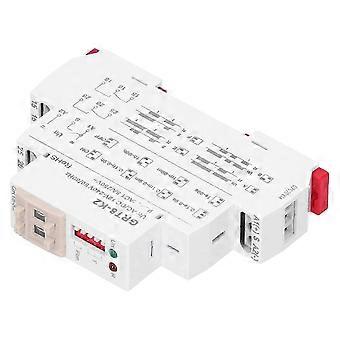

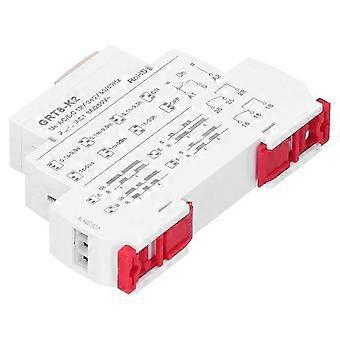

Item Type: Time Relay Material: ABS Function: A, B, E, F Power Terminal: A1-A2 Rated Control Power Supply Voltage: AC/DC 12-240V (50-60Hz) Power Consumption: AC 0.09-3VA/DC 0.05-1.7W Power Consumption: AC maximum.6VA/1.9W Power Supply Allowable Fluctuation Range: -15%; +10% Rated Impulse Withstand Voltage: 2.5kV Rated Insulation Voltage: 250V Power Indicator: Green LED Delay Range: 0.1 second -99 hours, normally open, normally closed Setting Method: Digital dialing setting Delay Accuracy: 1% Repeatability: 0.2% Temperature Fluctuation Error: 0.05%/C, at=20C (0.05%, at=689F) Output Contact Parameters: 2 sets of conversion contacts: Ith: 8A: AC-15: Uelle: 250V/1.5A 500mW Minimum Switching Power: 500mW Output Relay Indication: Red LED Mechanical Life: 1x100000000 Electrical Life (resistive load): 1x1000000 Reset Time: 200ms maximum Working Environment Temperature: -20-+55 Storage and Transportation Environment Temperature: -35-+75 Installation Method: 35mm rail installation Protection Level: IP20 Installation Location: Any Installation Altitude: s2000 meters Pollution Degree: 2 Wiring Capacity: 1x2.5mm2 or 2x1.5mm2 0.4N-m Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-dadangjia
