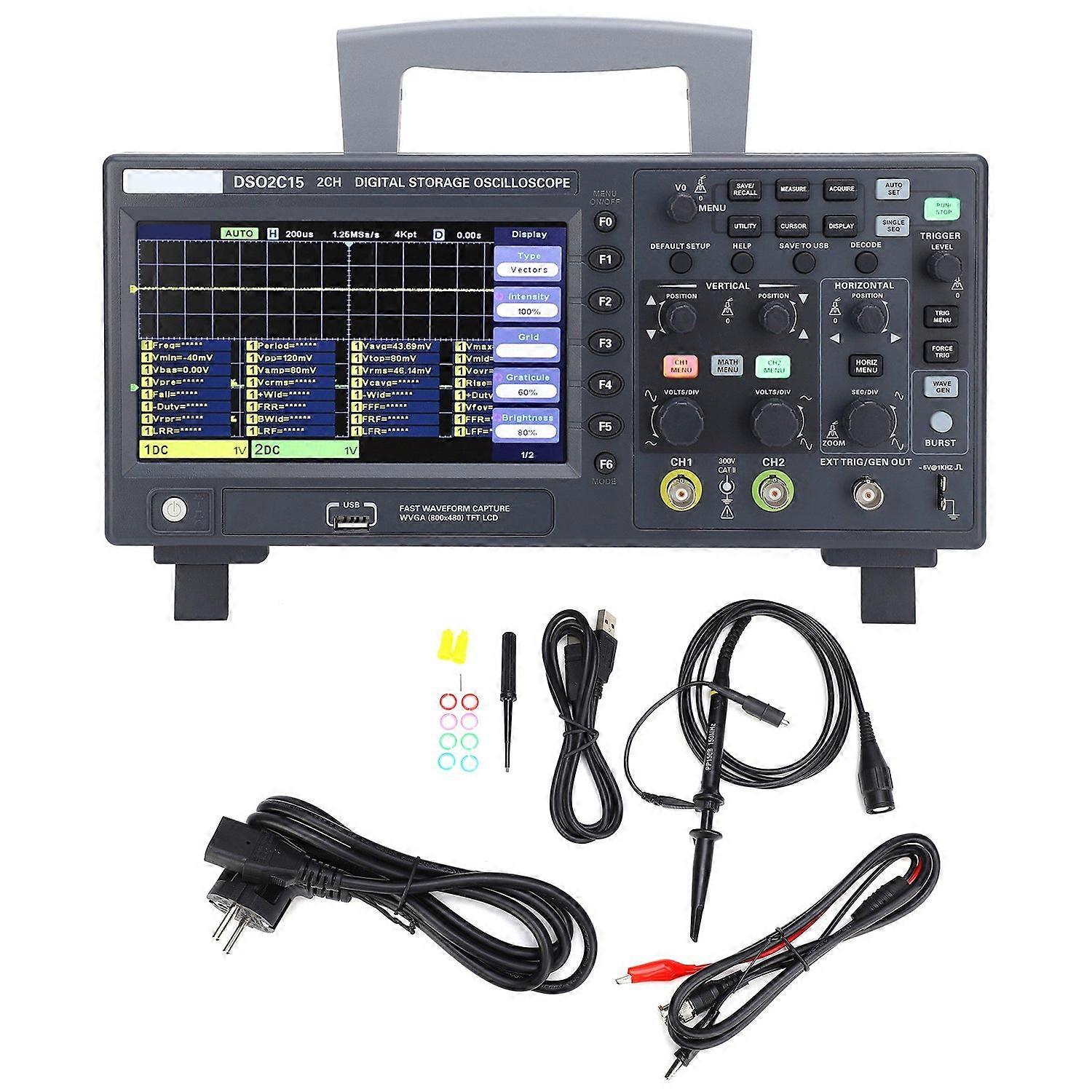

Feature: 1. Digital storage oscilloscope with 5‑digit digital voltmeter and 6‑digit hardware frequency meter functions. 2. 2CH dual‑channel design, 150MHZ bandwidth, 1GSa/s sampling rate. 3. Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC. 4. Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN, storage depth 8Mpts. 5. Rich SCPI remote control commands, easy operation and high measurement accuracy. Specification: Item Type: Oscilloscope Material: ABS Model DSO2C15 Bandwidth 150MHZ Oscilloscope Channel 2CH Oscilloscope Index Sampling Rate Range 1GSa/s (single channel), 500Msa/s Collection Method Sampling Sample Data Peak-To-Peak Display high frequency and random glitches Average Value Average waveform times: 4, 8, 16, 32, 64, 128 High Accuracy Up to 12bit Input Input Coupling DC, AC or ground (DC, AC, GND) Input Resistance 1MΩ±2% II20pF±3PF Probe Attenuation Coefficient Setting 1X, 10X, 100X, 1000X Voltage Level 300V CATII Maximum Input Voltage 300V RMS (10X) Horizontal System Waveform Interpolation (SinX)/X Maximum Record Length Maximum 8M per channel Maximum 4M For Dual Channels Horizontal Scale Range 2ns/div-100s/div, 1, 2, 5 steps Time Base Mode X-T, X-Y, Roll Null Offset ±0.5divX minimum time base gear Trigger Trigger Mode Automatic, normal, single Trigger type Edge trigger, pulse width trigger Video trigger, slope trigger, timeout trigger Window trigger, pattern trigger, interval trigger, runt trigger, UART trigger LIN trigger, CAN trigger IIC trigger Measuring Cursor Voltage difference between cursors△V Time difference between cursors△T The reciprocal of △T, in Hz (1/△T) Automatic Measurement Double peak value, frequency, average value, maximum value, minimum value, period, top value, middle value, bottom value, amplitude, mean squares root, rising edge overshoot, falling edge preshoot, period root mean square, period average , Rise time, fall time, positive pulse width, negative pulse width, positive duty cycle, negative duty cycle, FRR, FFF, falling edge overshoot, rising edge preshoot, pulse width, FRF, FFR, LRR, LRF, LFR, LFF Digital Voltmeter Data Source CH1-CH2 Measurement Type DC RMS, AC RMS, DC Frequency Meter Hardware 6 bits Computation Data Source CH1-CH2 Operator =, +, -, ×, ÷, FFT FFT Point 1024 Window Rectangular, Hanning, Heming, Blackman, Bartlett, flat top Display Single display or full display Vertical Scale dB, VRms Storage Save/Recall (Non-Volatile) 9 types of files can be saved and recalled internally, including settings, waveforms, and references Save to External Storage CSV file, BMP picture (24 bit) Display Display Type 7in TFT LCD screen diagonally Display Resolution 800 (horizontal) x 480 (vertical) pixels Display Type Point, vector Wave Brightness Adjustable Grid Type Optional Grid Brightness Adjustable Screen Brightness Adjustable Afterglow 1s, 5s, 10s, 30s, unlimited Interface Standard Interface USB Host, USB Device Power Supply Voltage 100-120VACRMS(±10%), 45Hz to 440Hz, CATⅡ 120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ Power Consumption
