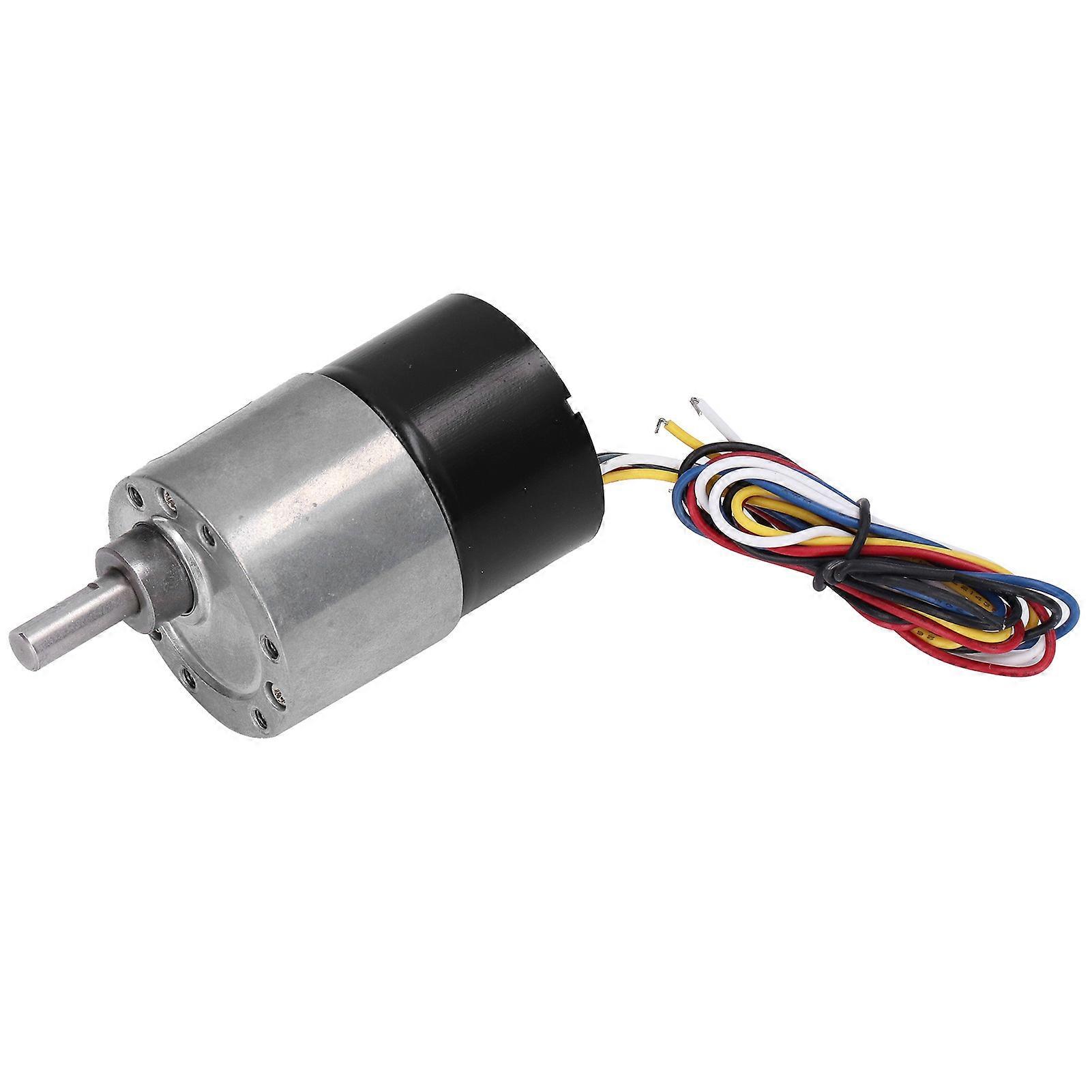

Feature: 1. Large Power: DC12V drive and copper wire motor, with strong conductivity and reduced resistance. 2. Good Performance: Helical gear structure, reduce load noise, with large torsion, good wear resistance and stable performance. 3. Excellent Material: Alloy shell is makes the motor is more wear resistant, rust resistant, corrosion resistant, which can prolong the service life. 4. Accurate Control: Brushless motor has accurate control, can CW CCW rotation, with FG signal feedback, PMW pulse width speed regulation (maximum 10000H). 5. Widely Use: Suitable for robots, mechanical equipment, intelligent machines, electric window, electric door, automatic rotating equipment, etc. Specification: Item Type: Brushless Geared Motor Model: JGB37-3525 Material: Copper, alloy Application: For robots, mechanical equipment, intelligent machines, electric window, electric door, automatic rotating equipment, etc. D Shaft Length: Approx. 15.5mm / 0.61in D Shaft Diameter: Approx. 6mm / 0.24in Motor Diameter: Approx. 37mm / 1.46in Rated Voltage: DC 12VReduction Ratio(turns ratio)6.31019305690131168270506No Load Current(MA) ≤70≤70≤70≤70≤70≤70≤70≤70≤70≤70No Load Rotational Speed(RPM)9606003202001076645352212Rated Torsion(Kg.cm)0.81.22.33.66.810.915.920.432.7Maximum35KGRated Speed(RPM)6854282281427625322515.78.5Rated Current(A)0.80.80.80.80.80.80.80.80.80.8Maximum Torsion(Kg.cm)1.52.54.77.512.522.532Maximum Load Bearing 35KGStalling Current(A)1.81.81.81.81.81.81.8Forbidden to Add TurnsLength(Approx.)19mm / 0.75in22mm / 0.87in24mm / 0.95in26.5mm / 1.04in29mm / 1.14in. Package List: 1 x Gear Motor Note: 1. Before use, confirm the motor voltage is correct, if it is DC motor, also confirm whether the power supply current is enough.2. Can't overload use, reason mainly divided into two parts, the torsion and axial strength, can not exceed the rated torsion of the motor load torsion, axial strength can not exceed the shaft axial and radial strength, allows the measured current is added after the load motor can not exceed rated current, the fuse on motors use must match to avoid overload burning motor.3. Do not store or operate in high temperature or humid environment, nor place in corrosive gas, which will reduce the effect of the motor.
