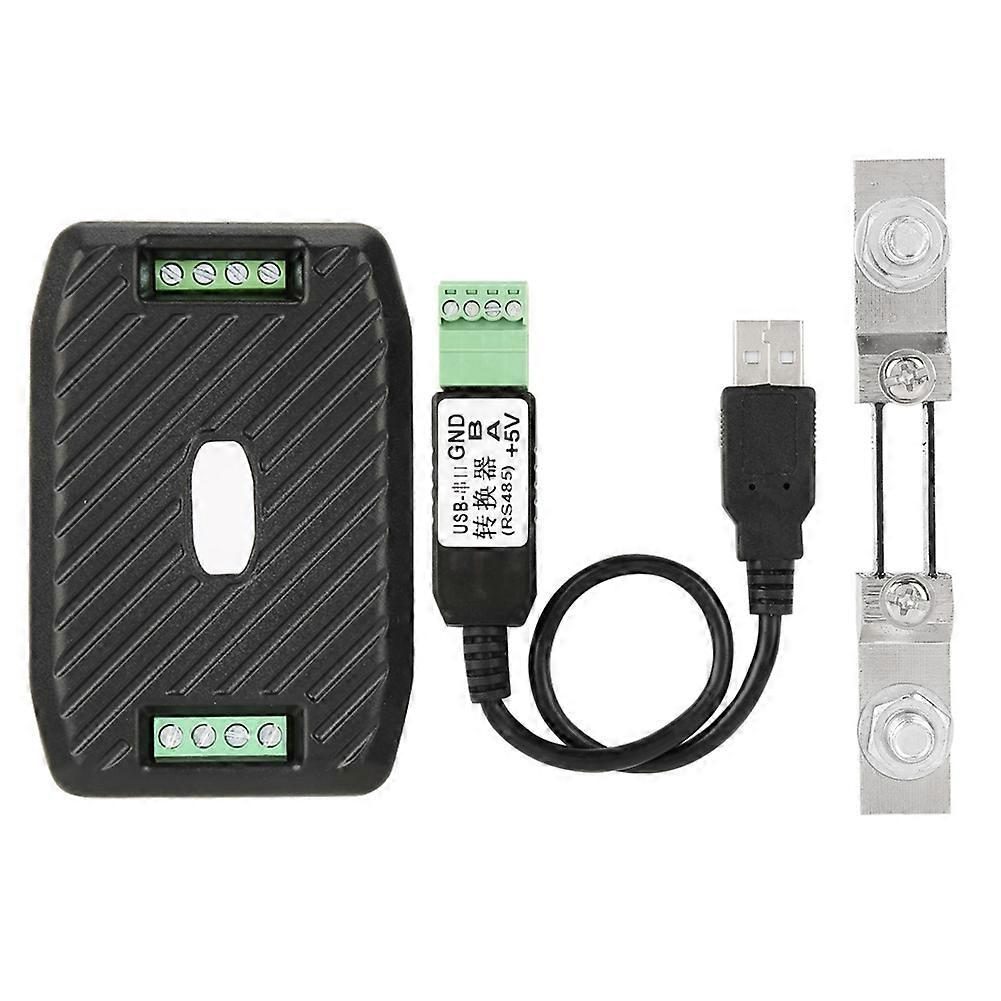

Feature 1It is mainly used for measuring DC voltage, current, active power, frequency and energy consumption 2The current measure range is 50A, 100A, 200A, 300A depend on the external shunt specification 3There are 10 different kits to choose, enough to meet your various need 4Physical layer use UART to RS485 communication interface, baud rate is 9600, 8 data bits, 2 stop bit, no parity 5The application layer use the ModbusRTU protocol to communicate, it only supports function codes such as 0x03, 0x04,0x06, 0x41, 0x42, etcThis module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption, the module is without display function, the data is read through the RS485 interface. Features: It is mainly used for measuring DC voltage, current, active power, frequency and energy consumption. The current measure range is 50A, 100A, 200A, 300A depend on the external shunt specification. There are 10 different kits to choose, enough to meet your various need. Physical layer use UART to RS485 communication interface, baud rate is 9600, 8 data bits, 2 stop bit, no parity. The application layer use the ModbusRTU protocol to communicate, it only supports function codes such as 0x03, 0x04,0x06, 0x41, 0x42, etc. Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm. Specification: Brand: PEACEFAIR Model: PZEM-017 Voltage: Measuring Range: 0.05-300V (When the test voltage is 7V, please use the independent power supply mode) Resolution: 0.01V Measurement Accuracy: 1% Current: Measuring Range: 0.02-300A (Can be matched with 50A, 100A, 200A, 300A four kinds of shunt) Resolution: 0.01A Measurement Accuracy: 1% Power: Measuring Range: 0.2-90kW Resolution: 0.1W Measurement Accuracy: 1% Energy Consumption: Measuring Range: 0-9999kWh Resolution: 1Wh Measurement Accuracy: 1% Reset Energy: Use Software to Reset Over Voltage Alarm: Default High Voltage Threshold: 300V Default Low Voltage Threshold: 7V Communication Interface: RS485 Interface Working Temperature: -20~60 Product Size: Approx. 9*6*2.3cm/3.5*2.4*0.9inch Weight: Approx. 77g~287g / 2.7oz~10.1oz Register address Description Resolution 0x0000 Voltage value 1LSB correspond to 0.01V 0x0001 Current value 1LSB correspond to 0.01A 0x0002 Power value low 16 bits 1LSB correspond to 0.1W 0x0003 Power value high 16 bits 0x0004 Energy value low 16 bits 1LSB correspond to 1Wh 0x0005 Energy value high 16 bits 0x0006 High voltage alarm status 0xFFFF is alarm,0x0000 is not alarm 0x0007 Low voltage alarm status 0xFFFF is alarm,0x0000 is not alarm Register address Description Resolution 0x0000 High voltage alarm threshold(5~350V), default is 300V 1LSB correspond to 0.01V 0x0001 Low voltage alarm threshold1~350V, default is 7V 1LSB correspond to 0.01V 0x0002 Modbus-RTU address The range is 0x0001~0x00F7 0x0003 The current range 0x0000: 100A 0x0001: 50A 0x0002: 200A 0x0003: 300A Optional Kit #1
