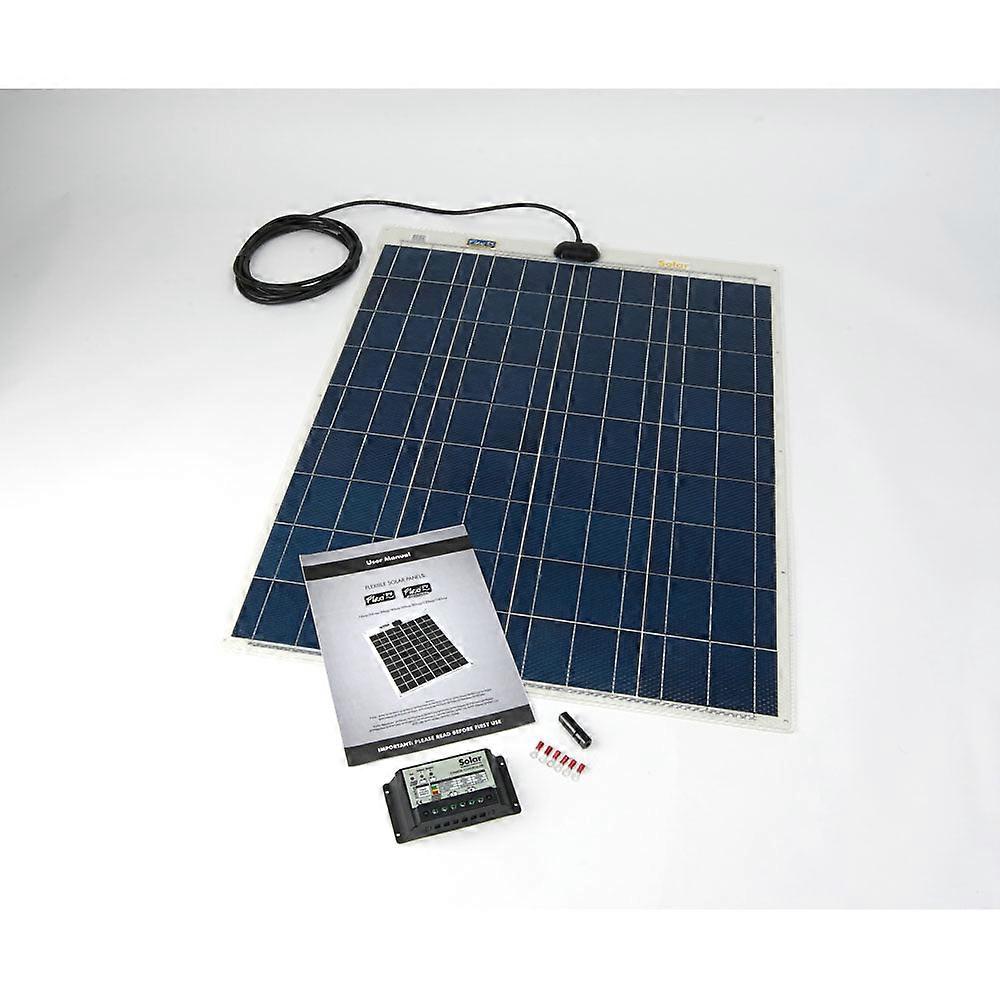

STPVF080 80W Flexible Solar Panel Power: 80W Size: 806 x 665 x 4mm Weight: 3.75Kg Amp hours per day (A): 27.3 Charge Controller: 10Ah Vmp (VDC): 17.6 Imp (A): 4.55 Voc (V): 21.9 Isc (A): 4.91 STCC10 10A Dual Battery Charge Controller Nominal System Voltage: 12/24VDC (automatic system voltage Recognition) Battery Voltage Range: 6-36V Rated Battery Current: 10A Over Voltage Disconnect Voltage: 16V/32V Charging Limit Voltage: 14.6V/29.2V Equalize Charging Voltage: 14.6V/29.2V Float Charging Voltage: 13.8/27.2V Operating temperature: -35oC to +55oC Overall dimensions: 135 x 70 x 35mm Terminal size: 6mm2 Net weight: 155g Datasheet Benefit from the semi-flexible panel's self-healing top surface The ETFE top layer gives the PV Logic flexi extra resilience in really tough conditions. ETFE has a memory effect or self-healing capacity in the event the panel comes into contact with branches etc thus ensuring any slight abrasions are ?healed? within a few hours. The flexi range can even be walked on with soft deck shoes During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface particularly useful if the panel is fitted to a boat deck. Completely waterproof Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon guaranteeing no water ingress. Cells protected from hot spots Where used on a camper van or boat partial shading of a solar panel is typical. In these circumstances heat build-up and damaging hot spots can occur leading to a significantly reduced life cycle of the panel. The larger 60w and above PV Logic flexi panels have up to two shading diodes housed within the fully waterproof junction box to prevent this occurrence. Superior design There are no square edges on a PV Logic flexi solar panel Rounded panel corners and a unique curved junction box provide superior adhesion no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box. Includes 10A Dual Battery Charge Controller This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems. The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults. Reverse current protection. Unique dual battery charging function. Efficient Series PWM charging increases battery lifetime and improves solar system performance. 12/24V automatic recognition.
