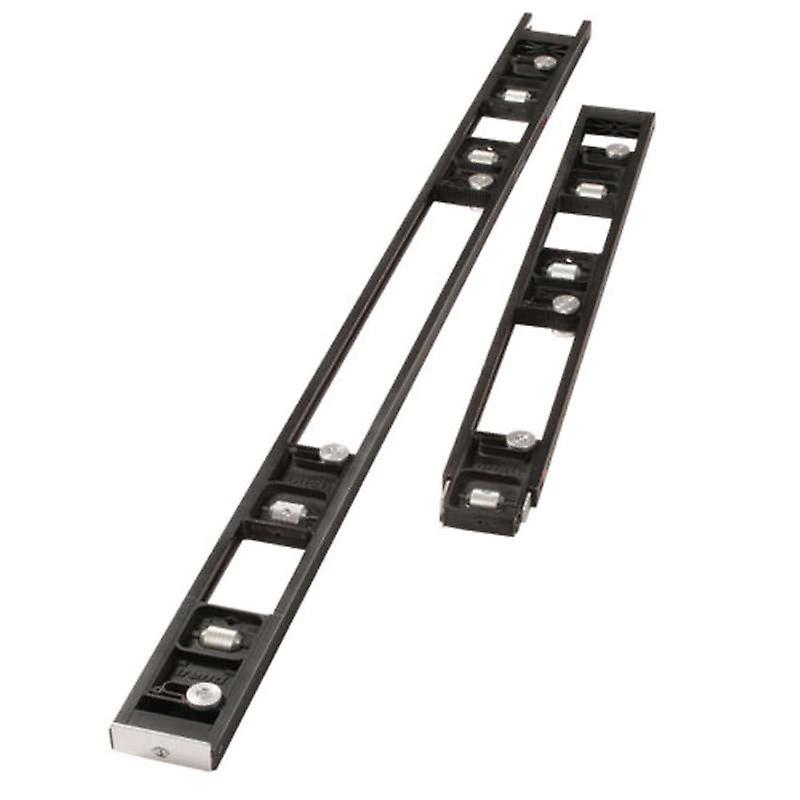

Trend H/JIG/C Hinge Jig Skeleton two part in case

£262.50
FREE Shipping

Trend H/JIG/C Hinge Jig Skeleton two part in case

Sold by:

Trend H/JIG/C Hinge Jig Skeleton two part in case

Price: £262.50
Sold by:
£262.50
FREE Shipping

Only 7 left in stock

We accept the following payment methods

Description

Two part adjustable block portable template set designed for recessing hinges in wooden doors & frames with a router. Features It is easy to use with minimal setting-up time, completing the job both accurately & quickly.  Used on-site & in joinery shops to increase productivity with excellent results.Fully adjustable apertures for fire door requirements and renovation work.  Idea for fitting a new door in an old frame.  No need for marking out in the conventional way.Quick & simple to set-up as the hinge is used as the pattern.Clean & accuraterecesses are achieved every time. Suitable for timber based doors & square butt hinges.Can be used on both inside and outside doors.Use with a light duty plunge router with 1/4 inch collet.  Long reach router cutter required, 12mm diameter with 70mm overall length.  Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm Unibase may be needed.. Specification Hinge sizes possible Length min. 25/8" (67 mm)  Length max. 5" (127 mm)Width min. 1/2" (12.7 mm)  Width max. 1 3/8" (35 mm)Door sizes possible Height min. 6' 5" (1956 mm)Height max.  2100 mm* (6' 10"*)Thickness min.  5/8" (16 mm)Thickness max.  2" (51 mm)Weight 2.9 kgJig overall length 1956 mm*  Please note fordoors over 2040mm the bottom hinge will be higher than 9" up. Standard Equipment 3 x Hinge sliding aperture block assemblies 4 x Bradawls(short blade) 1 x 16mm guide bush 1 x Carry case
  • Fruugo ID: 18556101-40656788
  • EAN: 5027654559734
